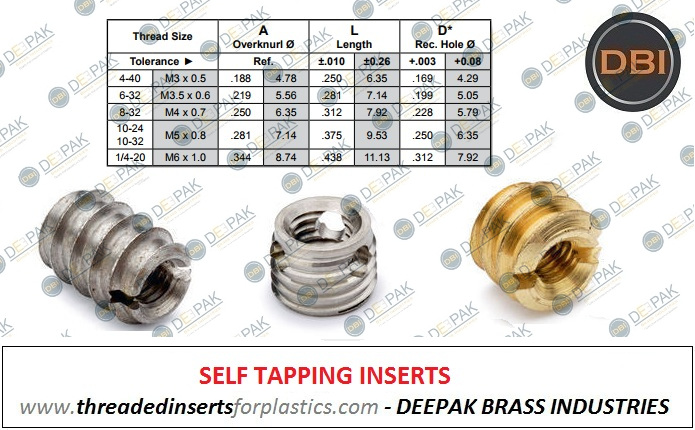

Self Tapping Inserts

Deepak Brass Self-Tapping Inserts are versatile. They can be used in more plastics, including thermoset plastics, while providing the highest, most consistent pullout strength.

Reduced thread profile and coarse pitch minimizes radial stress and potential hole wall damage. The course thread also maximizes the pull-out strength of these Self-Tapping Inserts. Suitable for applications where jack-out is unavoidable.

Self-threading inserts are brass inserts having both an external and internal thread and two slots which provide cutting edges much the same as a tap. Slots provide rapid cutting action.

When driven into a cored or drilled hole, the insert cuts its own thread cleanly and evenly. Friction between the insert and the plastic permanently holds it in place after installation. No special tooling is required.

Creates a vibration resistant, wear free, high loading screw joint. Can be used in plastic, hardwood, laminates, light alloys, cast iron, brass, bronze Self-threading inserts can be installed with a tap wrench or with a drill press and tapping head.

Types of Self Tapping Inserts are as

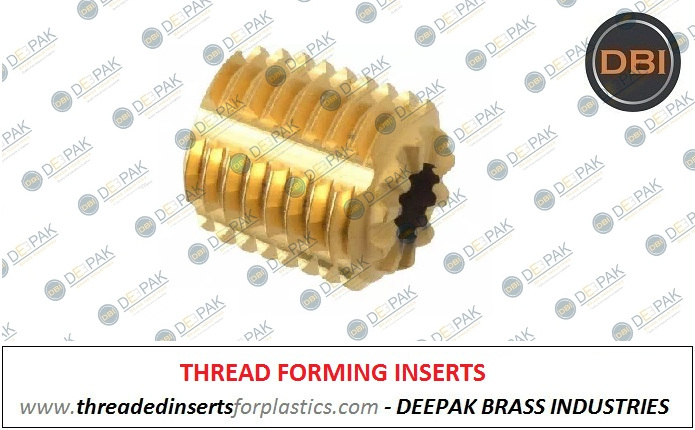

Thread-forming insert for ductile materials
Thread-cutting insert for brittle materials

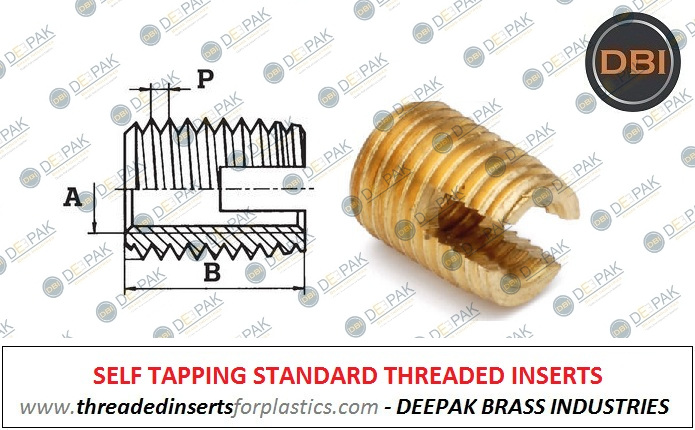

Self Threading Inserts

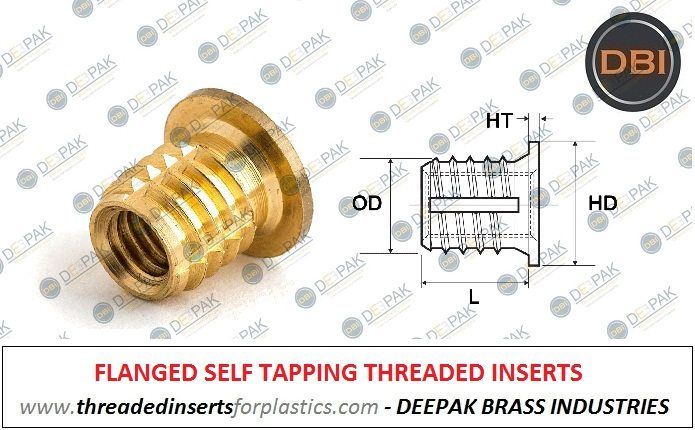

Flanged Self Threading Inserts

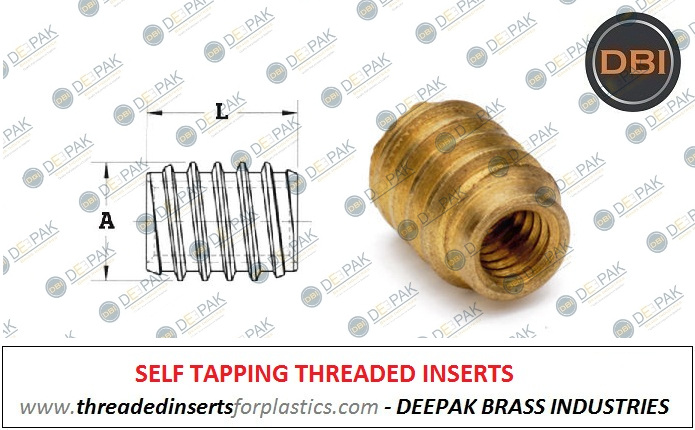

Self Cutting Threaded Inserts
Flanged Self Threading Inserts

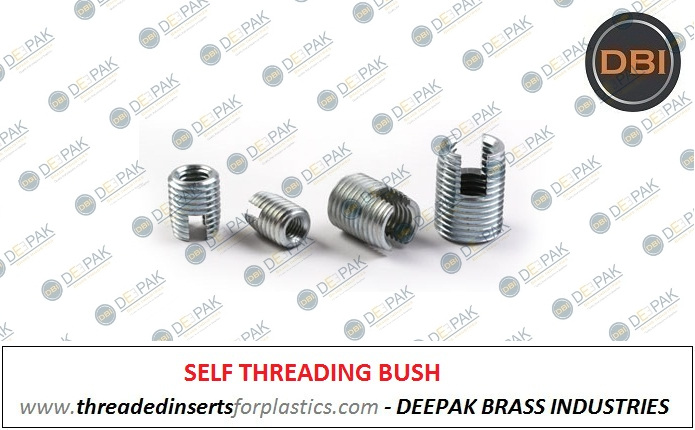

Self Tapping Insertion Bush

Our Self Tapping Inserts install easily into thermoset or thermoplastic materials

Material : Brass, Stainless Steel & Aluminium.

Available : In a wide variety of thread sizes, stud lengths and options.
